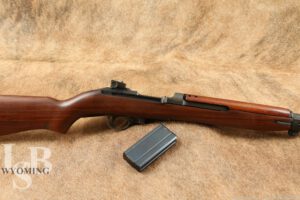

WWII Saginaw Gear S.G. M1 Carbine 18” Underwood Barrel Rifle C&R 1944

SOLD FOR: $1,180.00

LSB#: WY241008CW075

Make: Saginaw SG. Saginaw Steering Gear Division of General Motors– Saginaw, Michigan.

Model: M1 Carbine.

Serial Number: 5864080

Year of Manufacture: March to May of 1944

Caliber: .30 Carbine

Action Type: Semi Auto, fed by Detachable Magazines.

Markings: The bottom front of the barrel has an Arlington Arms import mark.

The top of the receiver is marked “U.S. CARBINE / CAL. 30 M1” and “SAGINAW S.G. / 5864080”.

The front of the barrel is marked “UNDERWOOD 3-44” with a flaming Bomb and a “P” 3” back from the front sight.

The barrel band is marked with an “AI” for AUTOYRE-INLAND

The bayonet lug is unmarked

The slide is marked “D 7161843-7 HSA”

The front sight is marked “PO B” an IBM made part.

The rear sight is marked  “H.I.” for Hemphill MFG CO.

The trigger group is marked “INLAND” for Inland Division.

The magazine catch is marked “M” and “E.I.” an Inland Division part.

The rotary safety is marked “N”

The hammer is marked “‘B/R”

The upper handguard is unmarked.

The recoil lug is unmarked

The stock is marked in the sling cut with “TRIMBLE TN” for Trimble Nursery the subcontractor for stocks for National Postage Meter and Underwood.

The oiler is unmarked

The magazine is marked “U”

Barrel Length: Approximately 18 Inches

Sights / Optics: The front sight is a fixed blade set between protective ears.  The rear sight is the later style sliding aperture sight with a serrated windage knob dovetailed to the receiver.

Stock Configuration & Condition: The stock on this rifle is an oval cut, low wood stock with a four rivet handguard, a type three barrel band with bayonet lug, and a later style rotary safety. The LOP is 13.25” from the front of the trigger to the rear of the buttplate. The stock appears to have been sanded and refinished. The stock shows very few scattered lines, compressions, and scratches. There is a chip out of the left side about mid way below the action.There are no visible cracks in the stock. The metal buttplate retains its metal finish and has semi dulled checkering. The upper handguard shows similar wear to the stock with very minor lines and compressions scattered throughout. Overall the wood is in about Very Good + condition.

Type of Finish: Parkerized

Finish Originality: Original and Refinished.

Bore Condition: The bore is very bright and the rifling is visible. There is no visible erosion in the bore. Our gauge shows a muzzle of 1.5.  In this writer’s opinion the bore rates 8/10.

Overall Condition: This rifle retains about 99% of its metal finish. The friction surfaces on the receiver and flat bolt show minor wear. The bolt has turned brown with age.

The balance of the finish shows some scattered very light handling wear. There is some faint blue writing on the charging handle. The trigger guard has some brown spots from age. The screw heads are sharp and the markings mostly clear. Overall this rifle is in Very Good condition.

Mechanics: The action functions correctly. We did not fire this rifle. As with all used firearms, a thorough cleaning may be necessary to meet your maintenance requirements.

Box, Paperwork & Accessories: This rifle includes a 15 round magazine in very good condition and a green canvas sling.

Our Assessment: The Saginaw Gear M1 Carbine is a significant variant of the iconic M1 Carbine, produced during World War II by the Saginaw Steering Gear Division of General Motors. The M1 Carbine itself was a lightweight, semi-automatic rifle designed to provide greater firepower than the standard-issue sidearm while being more portable than the M1 Garand. Saginaw Steering Gear Division, located in Saginaw, Michigan, was one of several companies contracted by the U.S. government to manufacture the M1 Carbine. Production of the M1 Carbine by Saginaw Gear began in 1943 and continued through the end of World War II. The company was chosen for its expertise in precision engineering and manufacturing, essential for the production of reliable military firearms. The Saginaw Gear M1 Carbine, like other variants, is chambered in .30 Carbine. It operates on a short-stroke gas piston system, allowing for semi-automatic fire. The rifle has an effective range of about 300 yards, making it suitable for various combat roles, from close-quarters engagements to medium-range skirmishes. Today, the Saginaw Gear M1 Carbine is a sought-after collector’s item due to its historical significance and being manufactured by Saginaw Steering Gear. The M1 Carbine, in general, remains a popular choice among collectors and shooters for its historical value, reliability, and ease of use. To get a better understanding of this M1 please see our high quality photos via the link and best of luck with your bidding!!!-R.L.
