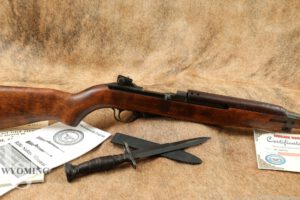

CMP WWII Underwood M1 Carbine .30Cal Rifle ROCK-OLA Barrel 1st Block
SOLD FOR: $1,225.00
LSB#: WY240914RR006
Make: Underwood
Model: M1 Carbine
Serial Number: 1412582
Year of Manufacture: Nov. 1942–July 1943, based on the serial range Mid 1943.
Caliber: .30 Cal
Action Type: Semi Automatic rifle fed by Detachable Magazines.
Markings:
The top-rear of the receiver is marked “UNDERWOOD / 1412582”. The bevel is marked with the flaming bomb.
The top-front of the receiver is marked “U.S. CARBINE”, “CAL .30 M1”.
The barrel is marked with a “P” about 5.5” back from the front sight. The front of the barrel is marked “ROCK-OLA”. The side of the gas block is marked “ROCK-OLA”. The top of the chamber has a series of stamped proof marks. The left side of the barrel flat has a small flaming bomb.
The front sight is stamped with “N”-International Business Machine part
The barrel band is marked with a diamond “D” this is a post war rebuild part.
The slide is marked with a “SG” for Saginaw Gear
The bolt is marked “-U-” for Underwood.
The rear sight is marked “I.R.C.O. 7160060”-for International Register CO.
The trigger group is marked “-U-” in the magazine well for Underwood.
The magazine release is marked “M H.I.” for Hemphill MFG CO..
The hammer is marked “WMB” an IBM Part
The Rotary safety is marked “CM” a post war rebuild part.
The Stock is stamped with the “FAT” stamp reading star “FAT / 68”. This stamp is typically found on Italian lend lease M1s re-imported by the CMP. FAT is an acronym for Fabbrica D’armi di Terni. The right flank has “70” painted on it. The inside of the left flank of the nose is marked “SA” for Springfield Armory a post war rebuild part.
The lug is unmarked.
The upper handguard is marked “S A” for Springfield Armory a post war rebuild part.
The bayonet is marked “LM1” on the blade.
Barrel Length: 18”
Sights / Optics: The front sight is a fixed blade set between protective ears. The rear sight is the later style sliding aperture sight with a knurled windage knob dovetailed to the receiver.
Stock Configuration & Condition: The stock on this rifle is an Oval cut, low wood stock with a four rivet handguard, a type 3 barrel band with a bayonet lug and a later style rotary safety. The LOP is 13.25” from the front of the trigger to the rear of the buttplate. This stock has been sanded and refinished as a result it shows very few marks and lines. There is a notable marr to the belly of the stock that has resulted in two chips and a series of compressions. There are no visible cracks. The handguard shows a series of compressions and nicks in the top of the handguard. The handguard shows no chips or cracks. The metal buttplate has semi-dulled checkering has lost its finish, turned green with patina and has begun to develop surface rust. Overall this stock is in about Very Good condition as refinished for C&R.
Magazine Quantity & Condition: None.
Type of Finish: Parkerized
Finish Originality: Refinished / original
Bore Condition: The bore is bright, with well defined rifling and no visible erosion. There is very minor pitting on the lands from use. According to our gauge the muzzle reads at 1.5. In this writer’s opinion the bore rates 8.75/10.
Overall Condition: This rifle retains about 98% of its metal finish. There is minor wear on the friction surfaces of the bolt and receiver. There are some faint scattered marks in the finish. The barrel band shows some brown dots from age. The trigger group has turned green with age. The refinish on this gun was very well done and it is surprisingly clean on the inside. The markings are mostly clear. The screw heads are sharp and serviceable. Overall this rifle is in about Very Good + to Excellent condition as refinished for C&R.
Mechanics: The action functions correctly. We did not fire this rifle. As with all used firearms, a thorough cleaning may be necessary to meet your maintenance requirements.
Box, Paperwork & Accessories: This rifle includes the bayonet and scabbard, a Yellow CMP chamber flag, Certificate of authenticity, safety manual, technical manual, M1 info card, and the original shipping check list from 2007.
Our Assessment: This Underwood M1 Carbine produced in mid-1943 represents the height of World War II’s streamlined production efforts, combining precision manufacturing with collaborative industry partnerships. Underwood Elliott-Fisher, known for their expertise in producing typewriters and other office machinery, was one of the key contractors tasked with manufacturing M1 Carbines during the war. This particular example features a Rock-Ola barrel, indicative of the cooperative effort among manufacturers, as Rock-Ola, famous for making jukeboxes, also produced barrels and complete carbines. This blending of components from various contractors highlights the wartime practice of interchanging parts to meet production quotas and ensure logistical efficiency.
The Springfield Armory stock, stamped with “FAT 68,” is a post-war addition signifying refurbishment at the Fabbrica d’Armi di Terni (FAT) in Italy during 1968. This mark reflects the carbine’s service beyond World War II, likely issued to Italian forces as part of U.S. military aid during the Cold War. These carbines were often rebuilt using a mix of original and replacement parts, refinished, and meticulously maintained, ensuring their functionality for decades after the war. The Springfield Armory stock’s robust construction and the FAT stamp connect this carbine to the intricate post-war history of American small arms used by allied nations.
Reimported and refinished by the Civilian Marksmanship Program (CMP), this M1 Carbine comes with the added provenance of a known and trusted source for surplus military firearms. The CMP’s refinishing process includes careful cleaning and preservation, ensuring the firearm’s functionality while maintaining its historical integrity. This Underwood M1 Carbine is a testament to the longevity and versatility of the design, serving as both a functional piece of history and a collector’s item that reflects decades of global military use and stewardship. To better understand this M1 carbine please see our high quality photos Via the link and best of luck with your bidding!!!-R.L.
