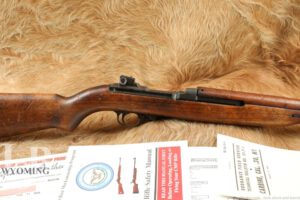

CMP Winchester Repeating Arms M1 Carbine .30Cal Semi-auto Rifle 1944 C&R
SOLD FOR: $1,345.00
LSB#: WY240914RR007
Make: Winchester
Model: M1 Carbine
Serial Number: 5627962
Year of Manufacture: Receiver produced December 1943- Early 1944, Barrel Date 6-1943. Sold by the CMP in 2008.
Caliber: .30 Carbine
Action Type: Semi Automatic rifle fed by Detachable Magazines.
Markings:
The top-rear of the receiver is marked “WINCHESTER / 5627962”
The top-front of the receiver is marked “U.S. CARBINE”, “CAL .30 M1”.
The barrel is marked with a “P” about 2” back from the front sight. The front of the barrel is marked “UNDERWOOD / 6-43” with a flaming bomb mark.
The barrel band is marked “MMQ”
The front sight is marked “SI U” Underwood made front sight for Inland.
The rear sight is marked Shield “H”-Hemphill MFG. Co.
The slide is marked with a “W” a Winchester slide
The trigger group is marked “INLAND” Inland Division
The magazine release button is marked “MWA”
The hammer is marked “B/R” Jasper Blackburn Co. made for Rock-Ola
The rotary style safety is marked “Cm” a post war rebuild part.
The Stock is stamped with the “FAT” stamp reading star “FAT / 68”. This stamp is typically found on Italian lend lease M1s re-imported by the CMP. FAT is an acronym for Fabbrica D’armi di Terni. The only other legible marking on the stock is an “X” on the left flank behind the sling cut.
The lug is unmarked.
The upper handguard is marked “M-U” for Marlin Underwood.
Barrel Length: 18”
Sights / Optics: The front sight is a fixed blade set between protective ears. The rear sight is the later style sliding aperture sight with a Knurled windage knob dovetailed and staked to the receiver.
Stock Configuration & Condition: The stock on this rifle is an Oval cut, low wood stock with a two rivet handguard, a type three barrel band with bayonet lug, and a later style rotary safety. The LOP is 13.25” from the front of the trigger to the rear of the buttplate. The buttplate has lost its finish, has semi-sharp checkering, and is beginning to turn brown in places with patina. The edges show heavy scratches. The handguard shows lines, and scratches with compressions scattered throughout. There are no visible chips or cracks. The stock shows heavy lines, compressions, scratches and discolorations. There are chips missing from around the sling cut. There are no visible cracks. There is a sticker of some kind stuck to the left side of the wrist. Overall this stock is in Good condition considering its age, how far it has traveled and the amount of use it has most likely seen.
Type of Finish: Parkerized and blued.
Finish Originality: Original.
Bore Condition: The bore is bright, with well defined rifling. The grooves and lands show minor lines from use with no visible erosion. According to our gauge the muzzle reads at 1.0. In this writer’s opinion the bore rates 8.5/10.
Overall Condition: This rifle retains 90% of its original finish. Almost the entire rifle has turned brown / green from patina. The bolt and receiver show only minor wear on the friction surfaces. There is a rough patch from the factory on the front of the trigger guard where it meets the safety. The screw heads are sharp, and the markings are clear. Overall this rifle is in Good + condition for C&R given its age and apparent history.
Mechanics: The action functions correctly. We did not fire this rifle. As with all used firearms, a thorough cleaning may be necessary to meet your maintenance requirements.
Box, Paperwork & Accessories: This rifle includes a Yellow CMP chamber flag, Certificate of authenticity, safety manual, technical manual, M1 info card, and the original shipping check list from 2008.
Our Assessment: This Winchester M1 Carbine is a notable example of the rich and varied history of these iconic World War II firearms. Produced in 1943-44 by the Winchester Repeating Arms Company, this carbine was part of the extensive manufacturing effort that saw multiple American companies come together to meet the demand for reliable, lightweight rifles during the war. Winchester was one of the original ten prime contractors responsible for producing the M1 Carbine, and their rifles are highly regarded among collectors for their quality and historical significance. One of the distinctive features of this carbine is the “FAT” stock marking, which stands for “Fabbrica d’Armi di Terni,” an Italian armory. This marking indicates that the carbine was refurbished or inspected by the Italian military, likely during the post-war period when the United States provided surplus weapons to its NATO allies, including Italy. The FAT marking suggests that this rifle was part of a group of M1 Carbines that were loaned to Italy under the Military Assistance Program (MAP). This Winchester M1 Carbine was later re-imported by the Civilian Marksmanship Program (CMP). This adds another layer to its story. The CMP is a federally chartered program that promotes firearms safety training and marksmanship, and it has been responsible for distributing surplus military rifles, including M1 Carbines, to U.S. citizens. Many of the carbines re-imported by the CMP come with a rich service history, having been used by various allied forces before being returned to the United States. In summary, this Winchester M1 Carbine from 1943-44 is a remarkable artifact, emblematic of the widespread use and enduring legacy of the M1 Carbine beyond the Second World War. It tells a story not just of American production, but also of international military cooperation and the preservation of historical firearms through the efforts of programs like the CMP. I would also like to point out the Underwood barrel marking is one of the clearest examples I have seen, and the inclusion of the rare front sight made by Underwood for Inland on an Underwood barrel adds to the uniqueness of this rifle. To better understand this M1 carbine please see our high quality photos Via the link and best of luck with your bidding!!!-R.L.
