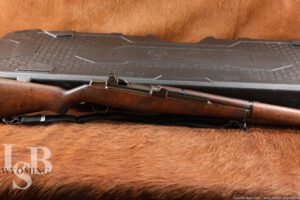

WWII USA Springfield M1 Garand U.S. .30-06 Semi Automatic Rifle 1944 C&R
SOLD FOR: $1,226.00
WOA#: WY240822RO020
Make: Springfield Armory
Model: M1 Garand
Serial Number: 3278428
Year of Manufacture: Receiver: November 1944. Barrel Date 2-1967
Caliber: .30-06 Springfield
Action Type: Semi Auto, En Bloc Clip Fed
Markings:
Receiver: “U.S. RIFLE / CAL. .30 M1 / SPRINGFIELD / ARMORY / 3278428”.
Trigger Group: “D28290-5-SA”- Springfield Armory
Hammer: “C46008-3 SA” Springfield Armory
Trigger Guard: There is a part number but it is mostly illegible.
Follower: ”11” Springfield Armory
Safety: “11” Springfield Armory
Receiver Leg: “B 36 B Q” and “D 28291 35” Springfield Armory
Op Rod: “6535382 SA” Springfield Armory
Barrel: “WINCHESTER 6535448 2-67 3 P M” with an Eagle cartouche, the front right side of the barrel is marked with a faint ARLINGTON ORD import mark.
Gas Plug: “ T / PAX”
Bolt: “5528287-SA / B-2-0” Springfield Armory
Receiver Bottom: “B”.
Barrel Length: Approximately 24 Inches
Sights / Optics: The front sight is a blade set between two protective wings. The rear sight is a fully adjustable aperture sight set between two protective wings. The windage knob is marked “LEFT arrow” twice and with “DRC”. The elevation knob is marked from 2-12 in increments of 2.
Stock Configuration & Condition: The wood stock has a traditional Semi-pistol grip, metal nose caps, two sling loops, stacking ring, and a checkered metal buttplate with storage compartment. The LOP measures 13” inches from the front of the trigger to the back of the buttpad. The wood on this rifle shows moderate to heavy marks, lines and compressions from use and age. Most of the chips and major marks have been filled or sanded and then finished over. The forward part of the upper handguard has a crack forming from the nose that runs about 1”. The stock shows no cracks. There is a chip out of the belly of the stock just in front of the trigger group and a medium scuff on the toe of the butt. The metal buttplate has lost its finish and most of the checkering and shows many scratches and marks. Overall the furniture on this rifle is in about Fair + to Good condition as refinished for C&R.
Type of Finish: Parkerized
Finish Originality: Original
Bore Condition: The bore is semi-gray and the rifling is well defined. There is minor visible erosion in the bore. In this writer’s opinion the bore rates 7/10. Our gauges show a muzzle reading of about 2 and a throat erosion reading of about 2.25-2.5.
Overall Condition: This rifle retains about 90% of its original metal finish. The gas tube, nut and plus have lost their finish and show some lines and marks. The friction surfaces on the bolt and receiver show minor finish loss as well. The rest of the rifle’s finish has turned brown / green from patina and age but shows no notable marks or wear. The markings on the bevel have begun to fade and the marking on the trigger guard is mostly illegible however the rest of the markings are clear. Overall the rifle is in about Good + condition for C&R.
Mechanics: The action functions correctly. We did not fire this rifle. As with all used firearms, a thorough cleaning may be necessary to meet your maintenance requirements.
Box, Paperwork & Accessories: This rifle includes a plastic CMP case this is not a CMP rifle, it is just in the case, and a black NC star sling.
Our Assessment: The M1 Garand, designed by Canadian-born John C. Garand and manufactured by Springfield Armory, holds an iconic place in American military history. Serving as the standard-issue rifle for the U.S. military during World War II and the Korean War, it was the first semi-automatic rifle to be generally issued to the infantry of any nation. Chambered in .30-06 Springfield, this gas-operated, rotating bolt rifle gave American troops a distinct advantage in firefights, allowing for a rate of fire that bolt-action rifles simply couldn’t match. The M1 Garand’s design was revolutionary for its time, with an internal magazine fed by an eight-round “en bloc” clip. The rifle automatically ejected the clip with a distinctive “ping” sound when empty, signaling the need for a reload. This sound became iconic, a signature auditory clue of the weapon’s presence on the battlefield. While the fixed magazine and clip system did present some limitations, they were largely outweighed by the rifle’s advantages in speed and firepower. Today, the M1 Garand is a coveted piece for collectors, competitive shooters, and history enthusiasts alike. It is often seen in vintage military shooting competitions and has become a popular choice for hunters who appreciate its historical significance. With its blend of innovative design, rugged reliability, and proven effectiveness, the M1 Garand is more than just a relic of the past; it’s a symbol of American ingenuity and the bravery of those who carried it into battle.
This rifle began its life in November of 1944 and was re-barreled sometime after 1967. The replacement barrel is marked with a faint Arlington Ord import stamp. With the exception of the repairs done to the stock this rifle has basically all original finishes. It will make a good addition to a collection and should be a good shooter. The markings on the Winchester barrel are particularly cool to see in person. I always love seeing the DOD cartouche stamped on the barrel. To better understand this M1 please see our high quality photos via the link and best of luck with your bidding!!!-R.L.
