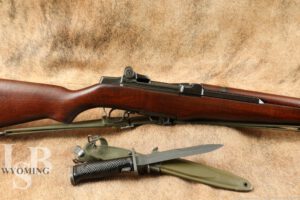

Post War Springfield M1 Garand .30-06 Semi-Auto Rifle MFD 1956-57 C&R
SOLD FOR: $1,375.00
LSB#: WY241009TC001
Make: Springfield Armory
Model: M1 Garand
Serial Number: 5924530
Year of Manufacture: Receiver: 1956-1957. Barrel Date 10-1955.
Caliber: .30-06 Springfield
Action Type: Semi Auto, En Bloc Clip Fed
Markings:
Receiver: “U.S. RIFLE / CAL. .30 M1 / SPRINGFIELD / ARMORY / 5924530”.
Trigger Group: “6528290-SA”- Springfield Armory
The trigger guard is unmarked
Hammer: “SA D5546008”- Springfield Armory
Safety: “SA 11”
Receiver Leg: “T9 / F 6528291”
Op Rod: “6535382 SA”
Barrel: “T N SA F6535448 10 55 A223A P M ” – Springfield Armory. The barrel also has the DOD Eagle cartouche stamp and an illegible proof.
Follower- unmarked
Bolt: “6528287-SA / YO-1”
Gas Plug “O P”
Stock: The left side of the stock has the DOD cartouche. The face of the grip has a circle “P” acceptance stamp. The pommel is marked “258”.
The bayonet is marked “U.S. M5A1 / MILPAR COL”
The scabbard is marked “U.S.M8A1 PWH”
Barrel Length: Approximately 24 Inches
Sights / Optics: The front sight is a blade set between two protective wings. The rear sight is a fully adjustable aperture sight set between two protective wings. The windage knob is marked with “Left” twice and two arrows with “DRC”. The elevation knob is marked 2-12 in increments of 2, “WCE”.
Stock Configuration & Condition: The wood stock has a semi-pistol grip, metal nose caps, stacking loop, double sling loops, and a metal buttplate with hinged door for storage. The LOP measures 13” from the front of the trigger to the back of the buttplate. The stock shows light scattered marks, lines, and compressions, with several very small chips missing from in front of the bottom metal, and a notable scuff in front of the buttplate on the toe of the heel. There are no visible cracks. The handguards show very light wear with only a few minor marks, none that are noteworthy. The metal buttplate shows scratches and marks, has lost its finish and has semi-dull checkering except on the door where the checkering is still sharp. Overall this stock set is in Very Good + to Excellent condition.
Type of Finish: Parkerized
Finish Originality: Original
Bore Condition: The bore is bright and the rifling is very well defined. There is no visible erosion in the bore. There is some minor fouling present from use. Our gauges show a muzzle of 1 and a throat of 1.5+. In this writer’s opinion the bore rates 8.75/10.
Overall Condition: This rifle retains about 97% of its metal finish. The exposed portion of the barrel shows a very small patch of thinning in the finish. The crown of the muzzle has lost its finish. The edges of the trigger guard show finish loss as do the friction surfaces of the bolt and the receiver. The finish is beginning to turn or has turned green with age. The face of the gas plug has lost its finish. There are some scattered light surface scratches mostly on the charging handle. The wings on the sight have been slightly bent down. The markings are clear and the screw heads are sharp. Overall this rifle is in about Very Good + to Excellent condition.
Mechanics: The action functions correctly. We did not fire this rifle. As with all used firearms, a thorough cleaning may be necessary to meet your maintenance requirements.
Box, Paperwork & Accessories: This rifle includes the bayonet, bayonet scabbard and a green canvas sling. This rifle also includes the full cleaning kit with rod, oiler, grease, M1 tool, and patches.
Our Assessment: The M1 Garand, designed by Canadian-born John C. Garand and manufactured by Springfield Armory, holds an iconic place in American military history. Serving as the standard-issue rifle for the U.S. military during World War II and the Korean War, it was the first semi-automatic rifle to be generally issued to the infantry of any nation. Chambered in .30-06 Springfield, this gas-operated, rotating bolt rifle gave American troops a distinct advantage in firefights, allowing for a rate of fire that bolt-action rifles simply couldn’t match. The M1 Garand’s design was revolutionary for its time, with an internal magazine fed by an eight-round “en bloc” clip. The rifle automatically ejected the clip with a distinctive “ping” sound when empty, signaling the need for a reload. This sound became iconic, a signature auditory clue of the weapon’s presence on the battlefield. While the fixed magazine and clip system did present some limitations, they were largely outweighed by the rifle’s advantages in speed and firepower. Today, the M1 Garand is a coveted piece for collectors, competitive shooters, and history enthusiasts alike. It is often seen in vintage military shooting competitions and has become a popular choice for hunters who appreciate its historical significance. With its blend of innovative design, rugged reliability, and proven effectiveness, the M1 Garand is more than just a relic of the past; it’s a symbol of American ingenuity and the bravery of those who carried it into battle.
This example began its life in the late 1950s towards the end of the Springfield production run of the M1 Garand. The rifle appears to have no refinished parts. The bore is in excellent condition and has plenty of life left in it. This rifle will make a good shooter and an excellent display piece. To better understand this M1 please see our high quality photos via the link and best of luck with your bidding!!!-R.L.
