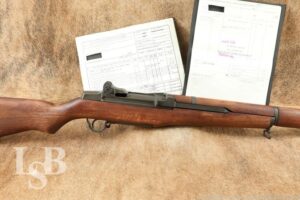

Early WWII Springfield M1 Garand 30-06 Service Grade Rifle CMP C&R MFD 1942
SOLD FOR: $1,425.00
LSB#: WY240913TF042
Make: Springfield Armory
Model: M1 Garand
Serial Number: 862373
Year of Manufacture: Receiver September 1942, Barrel Date 6-44. Sold in 1984 as a Service Grade Rifle.
Caliber: .30-06 Springfield
Action Type: Semi Auto, 8 round en bloc clip fed
Markings: There is no import mark.
Receiver: “U.S. RIFLE / CAL. .30 M1 / SPRINGFIELD/ ARMORY / 862373”
Trigger Group: “D28290 W.R.A” Winchester
Hammer: “C46008-8 SA” Springfield Armory
Safety: “SA 11”
Follower: Unmarked
Receiver Leg: “R28 D 28291-17 X”
Op Rod: “7760722-SA”
Charging handle: “NM”
Barrel: “P 1-S-A-6-44”.
Bolt: “D28287-19SA / A-7”.
Gas cylinder: “C”
Gas Plug “NHC IHC” International Harvester
Stock: DOD Eagle with stars. The front of the grip has Two “P” stamps.
Barrel Length: Approximately 24”
Sights / Optics: The front sight is a blade set between two protective wings. The rear sight is a fully adjustable aperture sight set between two protective wings. The windage knob is marked “LEFT arrow” twice and “NHC”. The elevation knob is marked from 2-12 in increments of 2 and “HRA”
Stock Configuration & Condition: The wood stock has a semi-pistol grip, metal nose caps, stacking loop, double sling loops, and a metal buttplate with hinged door for storage. The LOP measures 13” from the front of the trigger to the back of the buttplate. The wood on this rifle shows minimal scratches and marks but it shows what appears to be water damage to the wood. The stock has been sanded and refinished. There is a small chip in the right side above the op-rod. There are no visible cracks in the stock. The metal buttplate has semi-dulled checkering, has retained most of its finish, and shows only a small patch of surface rust. The rear portion of the upper handguard shows almost no wear. The forward one shows some light scattered marks with one notable compression on the top left. The handguards have no visible chips or cracks. The metal nose cap, stacking loop and sling swivels have developed some surface rust. Overall the stock is in Good + condition.
Type of Finish: Parkerized
Finish Originality: Refinished.
Bore Condition: The bore is semi bright, the rifling is well defined, there is minor erosion scattered in the bore mainly in the last third. According to our gauges the muzzle reads at 05 and the throat erosion reads between 0-1. In this writer’s opinion the bore rates 8/10.
Overall Condition: This rifle retains about 98% of its refinished metal finish. The barrel shows some very minor marks, the bolt and action show almost no signs of wear. There is some rub wear on the bevel of the receiver. The rifle has a slight green hue. The screw heads are sharp and the markings are clear. Overall this rifle is in about Very Good condition.
Mechanics: The action functions correctly although it is very dry and will need to be properly oiled before shooting. We have not fired this rifle. As with all previously owned firearms, a thorough cleaning may be necessary to meet your maintenance standards.
Box, Paperwork & Accessories: This rifle includes the original requisition and shipping forms for its purchase in 1984 from the Rock Island Arsenal Munitions and Chemical Command.
Our Assessment: The M1 Garand, designed by Canadian-born John C. Garand and manufactured by Springfield Armory, holds an iconic place in American military history. Serving as the standard-issue rifle for the U.S. military during World War II and the Korean War, it was the first semi-automatic rifle to be generally issued to the infantry of any nation. Chambered in .30-06 Springfield, this gas-operated, rotating bolt rifle gave American troops a distinct advantage in firefights, allowing for a rate of fire that bolt-action rifles simply couldn’t match. The M1 Garand’s design was revolutionary for its time, with an internal magazine fed by an eight-round “en bloc” clip. The rifle automatically ejected the clip with a distinctive “ping” sound when empty, signaling the need for a reload. This sound became iconic, a signature auditory clue of the weapon’s presence on the battlefield. While the fixed magazine and clip system did present some limitations, they were largely outweighed by the rifle’s advantages in speed and firepower. Today, the M1 Garand is a coveted piece for collectors, competitive shooters, and history enthusiasts alike. It is often seen in vintage military shooting competitions and has become a popular choice for hunters who appreciate its historical significance. With its blend of innovative design, rugged reliability, and proven effectiveness, the M1 Garand is more than just a relic of the past; it’s a symbol of American ingenuity and the bravery of those who carried it into battle.
This example has a very early serialized receiver (1942), the rifle was refinished possibly at the Rock Island Arsenal, and includes the original sales sheet where it was sold as a Service Grade rifle in 1984. For a better understanding of this rifle please see our high quality photos via the link and best of luck with your bidding!!!-R.L.
